Y-Shaped Angle Steel Tower (35 kV to 220 kV)
The Y-shaped angle steel tower is a sophisticated design engineered to provide effective load-bearing capacity while reducing material usage. Its innovative Y-shaped frame provides exceptional stability and balance for medium to high voltage transmission lines. The design maximizes strength and minimizes material weight, making it an excellent choice for areas with space limitations.
· Shape : A Y-shaped configuration with angled arms to distribute forces evenly.
· Material : Premium angle steel, carefully selected for its corrosion resistance and mechanical properties.
· Design : Optimized for both aesthetics and performance, offering a compact yet robust structure.
● Application : Perfect for medium to high-voltage transmission lines ranging from 35 kV to 220 kV.

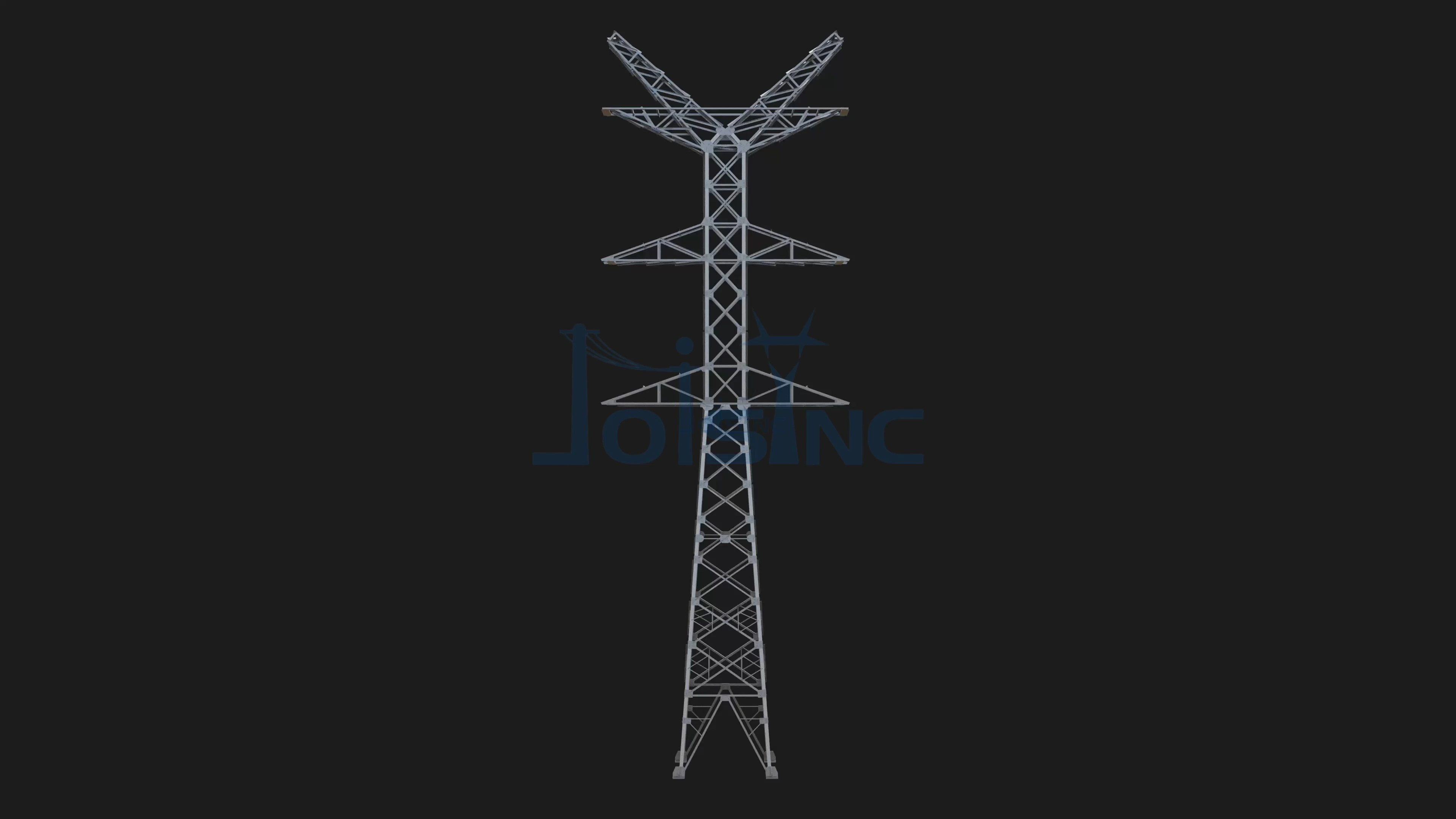

Product display
Main Structure
· The Y-shaped angle steel tower has a unique design that features a central vertical pole with two angled arms extending from the upper portion. This design optimizes the load distribution, as the Y-shape helps the tower to bear the weight of the transmission lines while minimizing material use. The arms of the tower are angled in a way that efficiently redirects the forces from the lines into the central vertical column.
Vertical Member (Central Pole)
· The central vertical pole, made of strong steel angles, is the backbone of the Y-shaped tower. It runs from the base to the top, supporting the angled arms and the load of the transmission lines. This central support is critical for maintaining the vertical stability of the entire tower structure.
"Y-Shaped Excellence: Compact Design, Unmatched Strength."
Angled Arms (Cross Members)
· The two angled arms extend outward from the upper portion of the vertical pole. These arms are designed to hold the power lines securely while ensuring an optimal line spacing for electrical safety. The Y-shape provides a compact structure with excellent load-bearing capacity. The arms are connected to the central pole at the top, forming an efficient load distribution system.
Cross-Arms and Line Supports
· At the ends of the angled arms, cross-arms are used to secure the power lines. The cross-arms are designed to handle various types of transmission lines, including single and multi-conductor setups. The arrangement allows for clear spacing between the lines and provides enough height clearance for safe operation.
Applications
· This tower design is most suitable for 35 kV to 220 kV transmission lines. The Y-shape offers a strong yet lightweight solution, ideal for applications in urban or space-constrained environments where smaller footprints are needed without compromising on strength or performance.
